#include <BMeasureUnits.h>

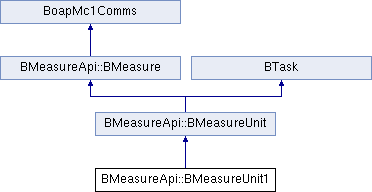

Inheritance diagram for BMeasureApi::BMeasureUnit1:

Public Member Functions
	BMeasureUnit1 (BMeasureUnits &measureUnits, BString device, Bool threaded=0, BUInt reqSize=1024)

BString	serialNumber ()

void	setSerialNumber (BString serialNumber)

void	disconnected ()

void	sendDataServe1 (const DataBlock &dataBlock)

void	sendDebugMessageServe (const BUInt32 &source, const BString &message)

Public Member Functions inherited from BMeasureApi::BMeasureUnit
	BMeasureUnit (Bool threaded=0, BUInt reqSize=1024)

virtual	~BMeasureUnit ()

BError	connect (BString device)
	Connect to a device. More...

void	disconnect ()

BString	device ()

BString	serialNumber ()

BString	info ()

BUInt	numChannels ()
	The number of channels of data. More...

void	run ()
	Threaded run mode. More...

virtual void	sendDataServe (const DataBlock &dataBlock)

virtual BError	setMeasurementConfig (const MeasurementConfig &configMeasurement)

virtual BError	setChannelConfig (const BUInt8 &channelNumber, const ChannelConfig &channelConfig)

Public Member Functions inherited from BMeasureApi::BMeasure
	BMeasure (Bool threaded=0, BUInt reqSize=512)

BError	getNodeInfo (NodeInfo &nodeInfo)
	Get node information. More...

void	factoryReset (const BInt32 &bootLoader, const BInt32 &resetConfig)
	Factory reset. More...

BError	getStatus (NodeStatus &nodeStatus)
	Get the node status. More...

void	sendStatus (const NodeStatus &nodeStatus)
	Sends the current status. More...

void	sendTime (const BTimeUs &time)
	Sends the current time. More...

BError	setSecureMode (const BUInt64 &key, const SecureMode &secureMode)
	Set the security mode. More...

BError	login (const BUInt64 &key, const BString &user, const BString &password)
	Provides user/password information for secure connection. More...

BError	setMode (const Mode &mode)
	Set the current operational mode. More...

BError	getInformation (Information &info)

BError	getInfoBlock (InfoBlock &infoBlock)

BError	getChannelConfig (const BUInt32 &channelNumber, ChannelConfig &channelConfig)

BError	setChannelConfig (const BUInt32 &channelNumber, const ChannelConfig &channelConfig)

BError	setChannelConfigFull (const BUInt64 &key, const BUInt32 &channelNumber, const ChannelConfig &channelConfig)

BError	getConfig (Configuration &config)
	Should we have this, not generic for different instruments ? More...

BError	setConfig (const Configuration &config)
	Should we have this, not generic for different instruments ? More...

BError	getMeasurementConfig (MeasurementConfig &measurementConfig)
	Get measurement config. More...

BError	setMeasurementConfig (const MeasurementConfig &measurementConfig)
	Set measurement config. More...

void	sendInfo (const InfoBlock &infoBlock)
	Sends an info block. More...

void	sendData (const DataBlock &dataBlock)
	Sends a data block. More...

BError	measure (DataBlock &dataBlock)
	Performs a single measurement. More...

BError	getAwgConfig (AwgConfig &awgConfig)
	Get AWG Configuration. More...

BError	setAwgConfig (const AwgConfig &awgConfig)
	Configure AWG. More...

BError	setAwgWaveform (const DataBlock &dataBlock)
	Configure AWG Arbitrary waveform. More...

BError	setDigital (const BUInt32 &bits)
	Set digital bits. More...

BError	getDigital (BUInt32 &bits)
	Get digital bits. More...

BError	setRelay (const BUInt32 &relayNum, const BInt32 &state)
	Set relay. More...

BError	getSwitch (const BUInt32 &switchNum, BInt32 &state)
	Get digital bits. More...

BError	filesysInfo (const BString &path, FilesysInfo &filesysInfo)

BError	filesysDelete (const BString &path, const FilesysDeleteType &deleteType)

BError	fileList (const BString &path, const BUInt32 &pos, FileInfo &fileInfo)

BError	fileOpen (const BString &name, const BString &mode, BUInt32 &handle)

BError	fileRead (const BUInt32 &handle, const BUInt32 &pos, const BUInt32 &len, FileData &data)

BError	fileWrite (const BUInt32 &handle, const BUInt32 &pos, const FileData &data)

BError	fileClose (const BUInt32 &handle)

BError	fileDelete (const BString &name)

BError	getBoardConfig (BoardConfig &config)
	Get the boards configuration. More...

BError	setBoardConfig (const BoardConfig &config)
	Sets the boards configuration. More...

BError	runBoardTest (const BString &test, BString &result)
	Runs the given board test. More...

BError	calibrate (const CalibrateMode &calibMode)
	Calibrate items. More...

void	sendDebugMessage (const BUInt32 &source, const BString &message)

BError	processRequest (BTimeout timeoutUs=BTimeoutForever)

virtual BError	getNodeInfoServe (NodeInfo &nodeInfo)

virtual void	factoryResetServe (const BInt32 &bootLoader, const BInt32 &resetConfig)

virtual BError	getStatusServe (NodeStatus &nodeStatus)

virtual void	sendStatusServe (const NodeStatus &nodeStatus)

virtual void	sendTimeServe (const BTimeUs &time)

virtual BError	setSecureModeServe (const BUInt64 &key, const SecureMode &secureMode)

virtual BError	loginServe (const BUInt64 &key, const BString &user, const BString &password)

virtual BError	setModeServe (const Mode &mode)

virtual BError	getInformationServe (Information &info)

virtual BError	getInfoBlockServe (InfoBlock &infoBlock)

virtual BError	getChannelConfigServe (const BUInt32 &channelNumber, ChannelConfig &channelConfig)

virtual BError	setChannelConfigServe (const BUInt32 &channelNumber, const ChannelConfig &channelConfig)

virtual BError	setChannelConfigFullServe (const BUInt64 &key, const BUInt32 &channelNumber, const ChannelConfig &channelConfig)

virtual BError	getConfigServe (Configuration &config)

virtual BError	setConfigServe (const Configuration &config)

virtual BError	getMeasurementConfigServe (MeasurementConfig &measurementConfig)

virtual BError	setMeasurementConfigServe (const MeasurementConfig &measurementConfig)

virtual void	sendInfoServe (const InfoBlock &infoBlock)

virtual BError	measureServe (DataBlock &dataBlock)

virtual BError	getAwgConfigServe (AwgConfig &awgConfig)

virtual BError	setAwgConfigServe (const AwgConfig &awgConfig)

virtual BError	setAwgWaveformServe (const DataBlock &dataBlock)

virtual BError	setDigitalServe (const BUInt32 &bits)

virtual BError	getDigitalServe (BUInt32 &bits)

virtual BError	setRelayServe (const BUInt32 &relayNum, const BInt32 &state)

virtual BError	getSwitchServe (const BUInt32 &switchNum, BInt32 &state)

virtual BError	filesysInfoServe (const BString &path, FilesysInfo &filesysInfo)

virtual BError	filesysDeleteServe (const BString &path, const FilesysDeleteType &deleteType)

virtual BError	fileListServe (const BString &path, const BUInt32 &pos, FileInfo &fileInfo)

virtual BError	fileOpenServe (const BString &name, const BString &mode, BUInt32 &handle)

virtual BError	fileReadServe (const BUInt32 &handle, const BUInt32 &pos, const BUInt32 &len, FileData &data)

virtual BError	fileWriteServe (const BUInt32 &handle, const BUInt32 &pos, const FileData &data)

virtual BError	fileCloseServe (const BUInt32 &handle)

virtual BError	fileDeleteServe (const BString &name)

virtual BError	getBoardConfigServe (BoardConfig &config)

virtual BError	setBoardConfigServe (const BoardConfig &config)

virtual BError	runBoardTestServe (const BString &test, BString &result)

virtual BError	calibrateServe (const CalibrateMode &calibMode)

Public Member Functions inherited from BoapMc1Comms
	BoapMc1Comms (Bool threaded=0, BUInt reqSize=512)

virtual	~BoapMc1Comms ()

void	setCommsMode (Bool halfDuplex)

void	setComms (BComms &comms)

void	setComms (BComms *comms)

void	setAddress (BUInt16 addressTo, BUInt16 addressFrom)

BUInt32	getApiVersion ()

BUInt32	setTimeout (BUInt32 timeoutUs)

BoapMc1Packet *	packetRx ()

virtual BError	processRx (BTimeout timeoutUs=BTimeoutForever)

Public Member Functions inherited from BTask
	BTask (const char *name="", BUInt stackSize=0, BUInt priority=1)

	~BTask ()

void	init (const char *name, BUInt stackSize=0, BUInt priority=1)

BError	start ()

void	stop ()

void	waitForCompletion ()

int	setPriority (BUInt priority)

Public Attributes
BMeasureUnits &	omeasureUnits

Bool	oenabled

Bool	oconnected

BUInt	oorder

BUInt	osource

BString	oserialNumber

Additional Inherited Members
Static Public Member Functions inherited from BMeasureApi::BMeasureUnit
static BError	findDevices (BList< BMeasureUnitDevice > &devices)
	Find available devices. More...

static BError	findDevicesUsb (BList< BMeasureUnitDevice > &devices)
	Find available devices on USB bus. More...

static BError	findDevicesNetwork (BList< BMeasureUnitDevice > &devices)
	Find available devices on Network. More...

Static Public Attributes inherited from BMeasureApi::BMeasureUnit
static int	blockNumChannels = 16

static int	blockNumSamples = 13

Protected Member Functions inherited from BoapMc1Comms
virtual BError	processRequests (BTimeout timeoutUs=BTimeoutForever)

BError	packetTx (BDataChunk *chunks, BUInt nChunks, BUInt16 waitCmdReply)

BError	packetRxData (void *data, BUInt nBytes)

BError	packetRxEnd ()

Static Protected Member Functions inherited from BTask
static void *	taskFunc (void *)

Protected Attributes inherited from BMeasureApi::BMeasureUnit
BString	odevice

NodeInfo	onodeInfo

Information	oinfo
	Instrument info. More...

MeasurementConfig	oconfigMeasurement

BArray< ChannelConfig >	ochannels

DataBlock *	odataBlock

BUInt32	osequenceNext

BUInt32	osampleCount

BUInt32	oblockCount

Bool	odisconnecting

Protected Attributes inherited from BoapMc1Comms
Bool	othreaded

BUInt32	oreqSize

BMutex	olockCall

BMutex	olockTx

BComms *	ocomms

BUInt32	oapiVersion

Bool	ohalfDuplex

BUInt32	otimeout

BUInt16	oaddressTo

BUInt16	oaddressFrom

BoapMc1Packet	opacketRxBase

BoapMc1Packet *	opacketRx

BoapMc1Packet	opacketTxBase

BoapMc1Packet *	opacketTx

BUInt	opacketRpcCmd

BSemaphore	opacketRpcSema

BSemaphore	opacketRpcDoneSema

BoapMc1Error	oerror

Protected Attributes inherited from BTask
const char *	oname

BUInt	ostackSize

BUInt	opolicy

BUInt	opriority

pthread_t	othread

Bool	orunning

Constructor & Destructor Documentation

◆ BMeasureUnit1()

BMeasureApi::BMeasureUnit1::BMeasureUnit1	(	BMeasureUnits &	measureUnits,
		BString	device,
		Bool	threaded = `0`,
		BUInt	reqSize = `1024`
	)

Member Function Documentation

◆ disconnected()

void BMeasureApi::BMeasureUnit1::disconnected ( )

virtual

Reimplemented from BMeasureApi::BMeasureUnit.

◆ sendDataServe1()

void BMeasureApi::BMeasureUnit1::sendDataServe1 ( const DataBlock & dataBlock )

virtual

Reimplemented from BMeasureApi::BMeasureUnit.

◆ sendDebugMessageServe()

void BMeasureApi::BMeasureUnit1::sendDebugMessageServe	(	const BUInt32 &	source,
		const BString &	message
	)

virtual

Reimplemented from BMeasureApi::BMeasure.

◆ serialNumber()

BString BMeasureApi::BMeasureUnit1::serialNumber ( )

◆ setSerialNumber()

void BMeasureApi::BMeasureUnit1::setSerialNumber ( BString serialNumber )

Member Data Documentation

◆ oconnected

Bool BMeasureApi::BMeasureUnit1::oconnected

◆ oenabled

Bool BMeasureApi::BMeasureUnit1::oenabled

◆ omeasureUnits

BMeasureUnits& BMeasureApi::BMeasureUnit1::omeasureUnits

◆ oorder

BUInt BMeasureApi::BMeasureUnit1::oorder

◆ oserialNumber

BString BMeasureApi::BMeasureUnit1::oserialNumber

◆ osource

BUInt BMeasureApi::BMeasureUnit1::osource

The documentation for this class was generated from the following files:
